All Products   -> Opening Mixing Mills



1.The rolls are made of chilled cast iron with vanadium and titanum alloys. The roll surface is hard and wearable. The
internal cavity is processed to make temperature well proportioned on the roll surface.
2.The machine is equipped with an overload protection device to prevent the major components from being damaged
due to overloading.
3.The machine is also equipped with and emergency device. When an emergent accident happens, just draw the pull
rod, and the machine will stop immediately. It is safe and reliable.
4.The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission
efficiency, lower noise and longer service life.
5.The base frame is a whole framework, which is convenient for installation.


(Two roll)

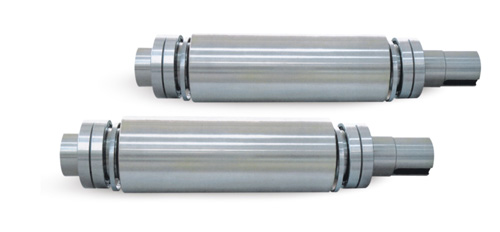

Chilled cast iron roller, apply to rubber, plastics industry, the compatibility - aligning bearings, flexible durable,
energy-efficient and reduce maintenance


Technical Specification:

Systems    Xk560  Xk450  Xk400
Roll Drive x Length mm  550×1530  450×1200  400×1000
Main Motor kw  90kw 6P AC  55kw 6P AC  37/45kw 6P AC
The former wire-speed roller m/min  27.65  23.2  20.6
Former roller speed rpm  16  16.5  16.5
Before and after the roller speed ratio    1:1.29  1:1.27  1:1.27
Reducer speed ratio    47.5  47.1  47
Machinery weight kg  17500  12000  7500
Appearance size LxWxH mm  5365×1946×2193  4558×1665×2015  4001×1500×1870
