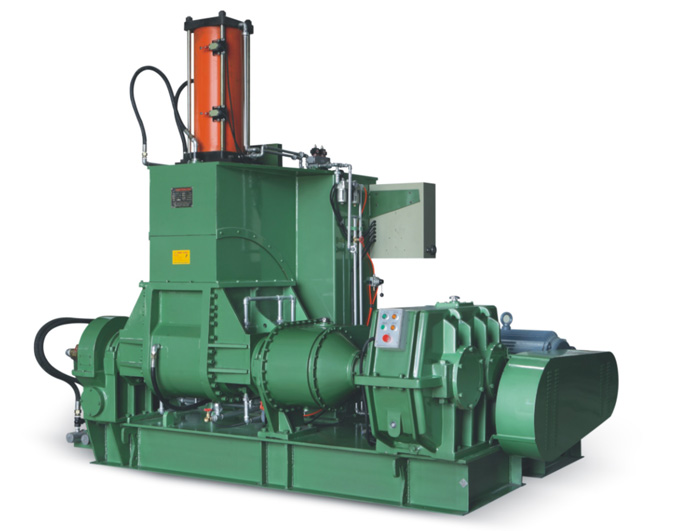

Dispersion Kneader
  product standard
  Explanation
  Exploded view
  High-speed Plastic, Rubbers, E.V.A, T.P.R, P.V.C and Elastomeric Compounding Line
(Air-cooling/ Water-cooling)

  Opening Mixing Mills
  Hydraulic Single Knife Rubber Cutter
  Rubber Filter Extruder
  XJ-45/65/85 Rubber Ext ruder
  Rotary Curing Machine
  Pin-barrel Cold Feed Rubber Extruder
  Air-cooled Hot-cut Recycled Plastics Granulator SJ Series
  Test Type Pelletizer Plant
  SJ-125/135/150 Engineering plastics
  SJ Single Recycled Plastics Gran



All P roducts   -> Dispersion Kneader


 型  号  X(S)N-5  X(S)N-10  X(S)N-20  X(S)N-35  X(S)N-55  X(S)N-75  X(S)N-110  X(S)N-150  X(S)N-200
 密炼容量  L  5  10  20  35  55  75  110  150  200
 驱动电机  kw  7.5  15  30  55  55/75  90/110  160/200  220  280
 翻动电机  kw  0.55  0.75  1.5  2.2  3.0  4.0  5.5  5.5  7.5
 翻转角度  110  110  110  140  140  140  140  140  140
 空压机  kw  1.5  2.2  3.0  5.5  5.5  7.5  7.5  15  20
 集尘器  HLL-10  HLL-10  HLL-10  HLL-10  HLL-15  HLL-20  HLL-30  HLL-30  HLL-30
水冷却(炼胶)  Mpa  0.2-0.4  0.2-0.4  0.2-0.4  0.3-0.4  0.3-0.4  0.3-0.4  0.3-0.4  0.3-0.4  0.3- 0.4
汽加热(炼塑)  Mpa  0.5-0.8  0.5-0.8  0.5-0.8  0.5-0.8  0.5-0.8  0.5-0.8  0.5-0.8  0.5-0.8  0.5- 0.8
电加热(炼塑)  kw  4  6  9  12  15  18  24  28  32
 机器重量  kg  1200  2300  4500  6500  7800  10500  14500  19500  22500
 外型尺寸
 mm

1900×
1000
×2000

2200×
1350
×2150
2500×
1480
×2500
3200×
1900
×3000
300×
2000
×3100
3800 ×2300
×3200
4100×
2700
×3580
4200×
3300
×3900
4500×
3400
×4200
